Product description

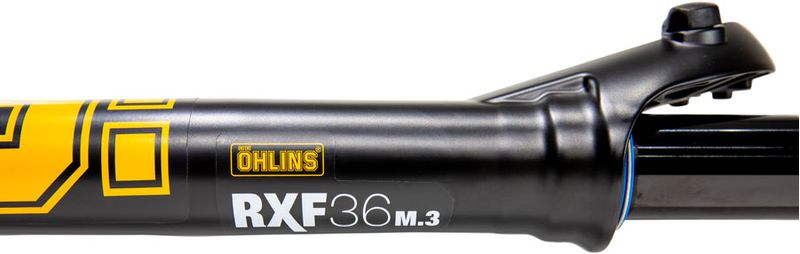

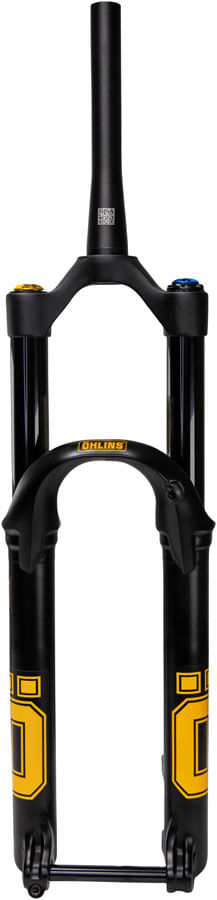

The RXF36 m.3 features an all-new chassis built around the race-proven TTX18 damper cartridge. This lightweight and highly progressive fork is fully optimized for demanding, next-level trail riding performance. The Ohlins race-winning TTX18 damping technology from the DH38 Race Fork has been adapted to deliver its renowned top-tier traction and control on the most demanding trails. The updated settings and reduced chassis friction offers improved sensitivity for greater traction and comfort to conquer any trail~With the new chassis, the fork delivers ultra-sensitive tracking over small bumps while maintaining Ohlins' signature precise steering and predictable handling—no matter how long or hard it's pushed.
- RXF36 m.3 features increased internal bushing overlap and an optimized configuration for 29” wheels

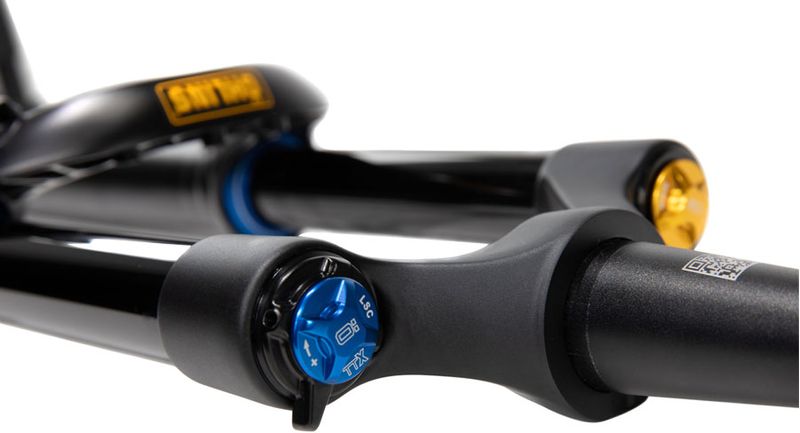

- Race-proven adjustment range is specifically designed for tough trails and provides 16 clicks of low-speed compression, 3 clicks of high-speed compression, and 16 clicks of rebound adjustment
- Features Ohlins' floating axle design for minimal friction and weighs 2050 g (with bolts and axle)

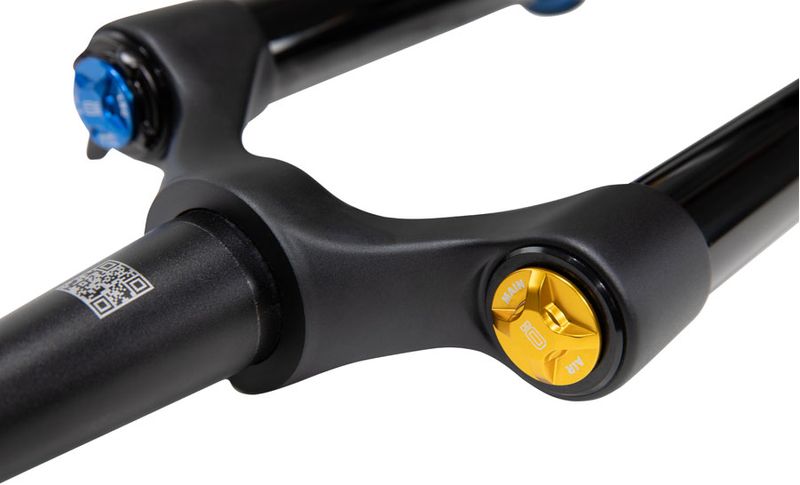

- The retuned, twin piston, three chamber air-spring system allows you to completely dial-in the level of progression—from the initial movement, right through to the bottom out
- Air spring is cartridge-based, allowing for easy swaps between coil and air if desired (coil cartridge sold separately)
- New surface treatment on the 36mm stanchions lowers the friction, boosts small bump sensitivity and overall ride smoothness
- Updated lowers feature a gloss black finish and bold new graphics, ensuring riders can feel and see the next level of performance every time they hit the trail or park
- 15mm x 110mm boost floating thru-axle axle design to minimize friction
- eMTB approved
Geometry
Specifications
