Product description
Change the stroke on the Ohlins TTX Air m.1 rear shock by unthreading the end-eye and sliding these spacers onto the shaft to get the correct stroke. All TTX Air shocks arrive from the factory set up in the longest stroke.
- Intended for the m.1 version of the TTX Air

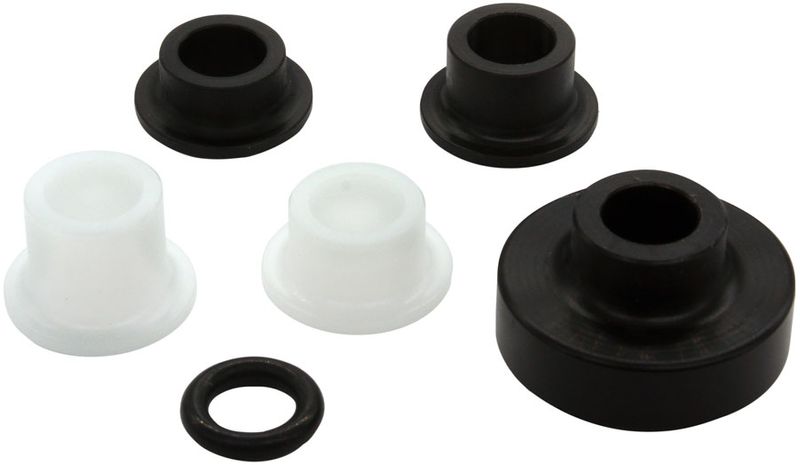

- Kit includes (4) stroke reducing spacers and (1) stroke/volume reducer
- Spacer one (7mm long = Full stroke), Spacer two (9.5mm long = Reduces stroke 2.5mm, Spacer three (12mm long = Reduces stroke 5mm, Spacer 4 (14.5mm long = Reduces stroke 7.5mm
- The 7.5mm stroke/volume reducer is larger with a different appearance due to it serving as both an air volume reducer as well as the stroke reducer
