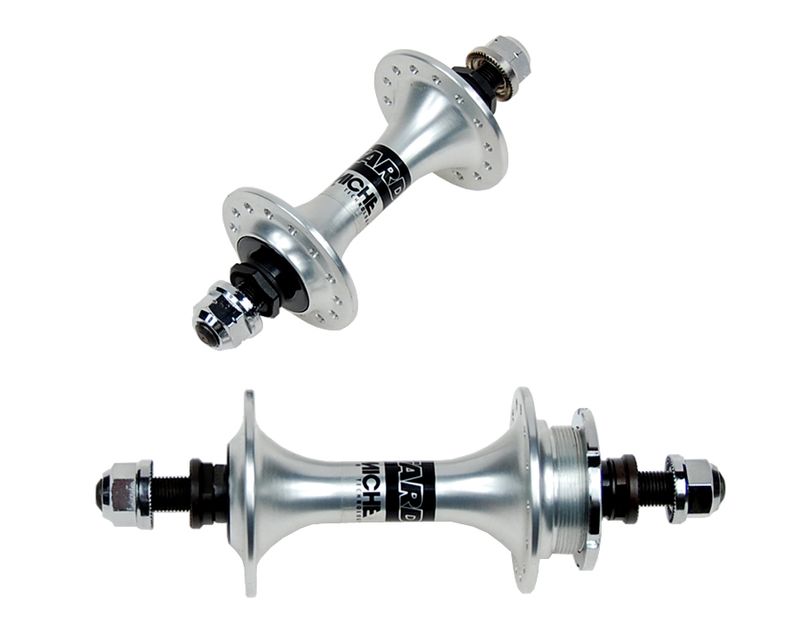

Miche Track Hubset - Small Flange 305-175

MICHE Hubset - Small Flange


Lightweight alloy body, sealed bearing mechanism and chrome-plated axle nuts

• Small flanged
• Sealed bearing mechanism
• Chrome plated axle nuts
• Lockring included

FRONT HUB

Front Axle Type: 9x1
Hub/Brake Compatibility: Rim Brake
Front Hub Spacing: 100 mm
Intended Use: Track
Front Wheel Type: Track
Skewer Included: NA, Bolt-On
Weight: 210.0 g
Non-Drive Side Center to Flange: 33.0 mm
Drive Side Center to Flange: 33.0 mm
Non-Drive Side Flange Diameter: 40.0 mm
Drive Side Flange Diameter: 40.0 mm

REAR HUB

Hub/Brake Compatibility: Rim Brake
Rear Axle Type: 10x1
Rear Hub Spacing: 120 mm
Intended Use: Track
Rear Wheel Type: Track
Skewer Included: NA, Bolt-On
Weight: 300.0g (single fixed w/lockring)

(fixed/fixed, fixed/free)
Non-Drive Side Center to Flange: 32.0 mm
Drive Side Center to Flange: 32.0 mm
Non-Drive Side Flange Diameter: 40.0 mm
Drive Side Flange Diameter: 40.0 mm

(single fixed)
Non-Drive Side Center to Flange: 46.0 mm
Drive Side Center to Flange: 32.0 mm
Non-Drive Side Flange Diameter: 40.0 mm
Drive Side Flange Diameter: 40.0 mm
