Product description

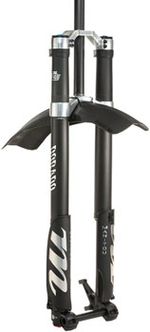

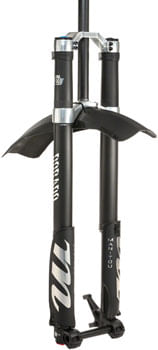

Back in a big way, the all-new Dorado Pro is ready to turn the suspension world upside down. Featuring an inverted design, carbon upper structure, 37mm stanchions, and refreshed internals the new Dorado Pro is the pinnacle of suspension technology. The new stiffer chassis is paired with an all-new sealed version of Manitou’s TPC+ damper and improved Dorado Air Spring with IRT volume adjuster. These technologies combined into one ultimate platform provides more than enough tunability to satisfy any savvy suspension tuner while being so easy to adjust that every rider can dial in their fork with ease.
- Carbon outer legs with 37mm 6000 Series aluminum stanchions
- Aluminum upper and lower crown, and steerer
- TPC+ with HBO damper system features separate systems that govern hydraulic bottom out, high speed and low speed compression damping, and an energy dependent damping circuit that responds to the overall oil displacement for a bottomless feel
- New 2-bolt drop crown features increased head tube length capability with 29" wheels
- TSR bleed buttons allow excess pressure built up in the outer legs of the fork to be equalized, while hydraulic and rubber bumpers provide bottom out protection
- New direct mount fender is reversible, allowing for two orientations "moto" for increased front of fork coverage, bike" for increased behind fork coverage
- 180, 190, 203mm internally adjustable travel
Geometry
Specifications
